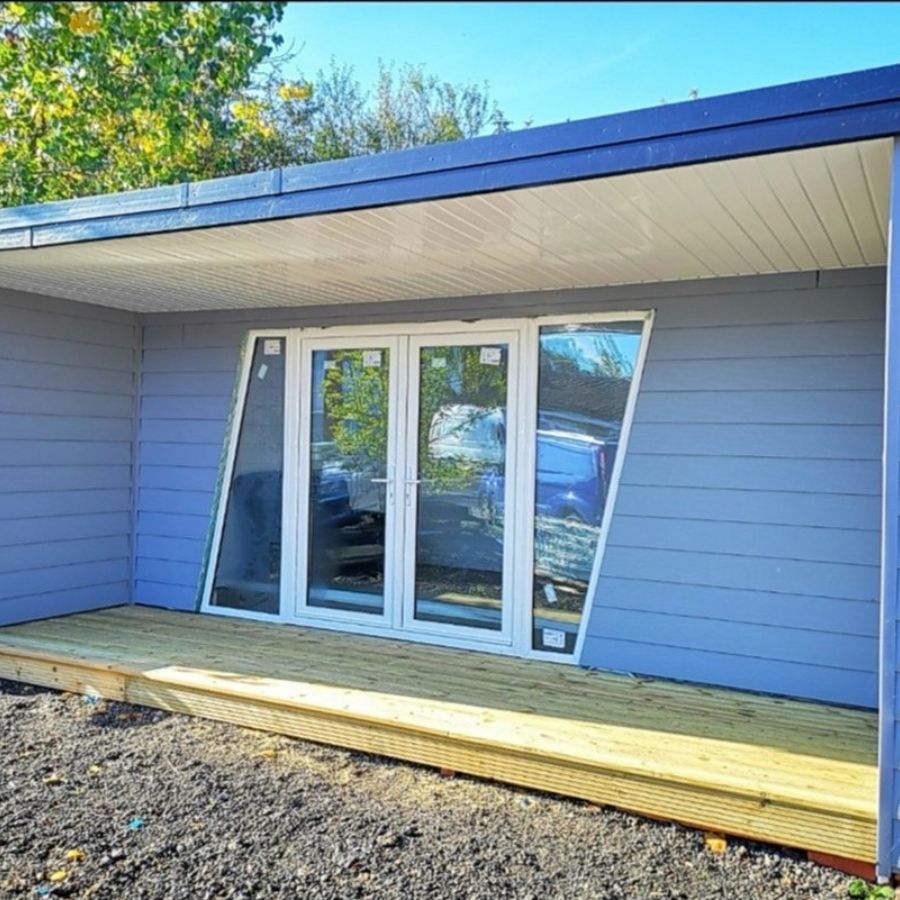

• Foundations

    We use a galvanised steel and concrete foundation system which raises the studio off the ground allowing airflow under the building eliminating damp.

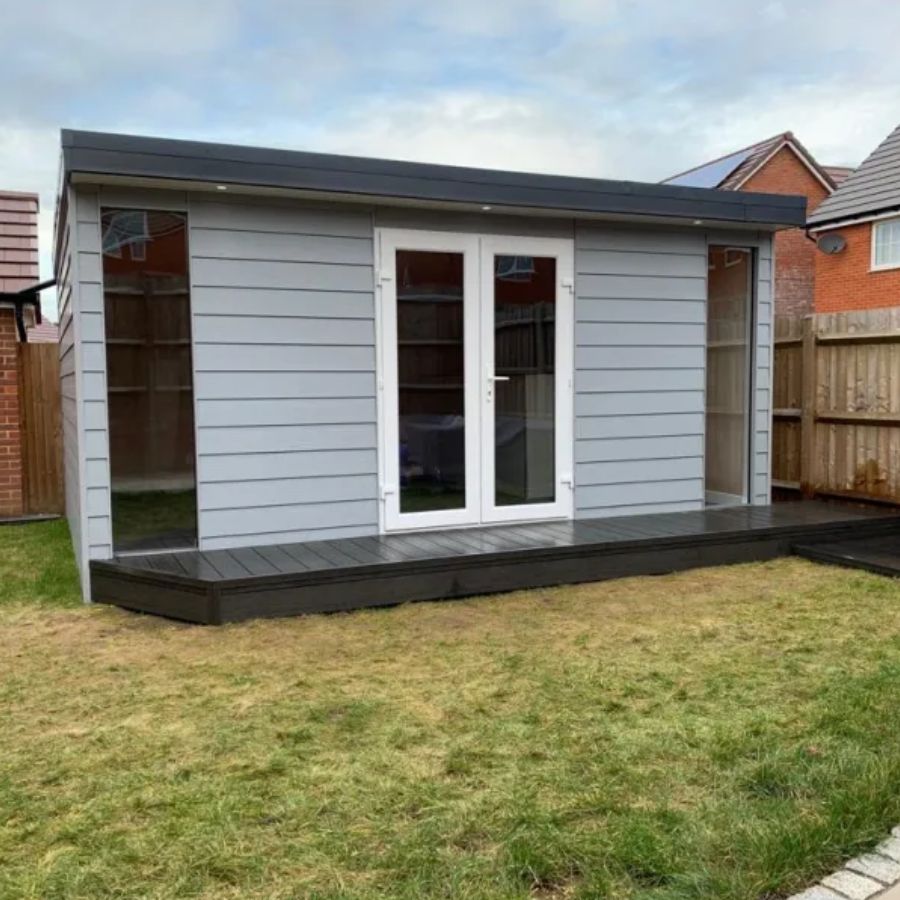

  • Wall construction

    Our wall construction consists of 8 layers (from inside to out).

    • Skim plaster
    • 12mm plasterboard
    • Breathable membrane
    • 100mm thermal insulation
    • 100mm galvanised steel frame (stronger and more durable than wood)
    • Vapour barrier
    • Thermal bridging (pressure treated lattice batten)
    • Exterior cladding

    We use FSC produced Western Red Cedar and Siberian larch cladding fixed to a lattice of pressure treated batten which allows the cladding to breathe.

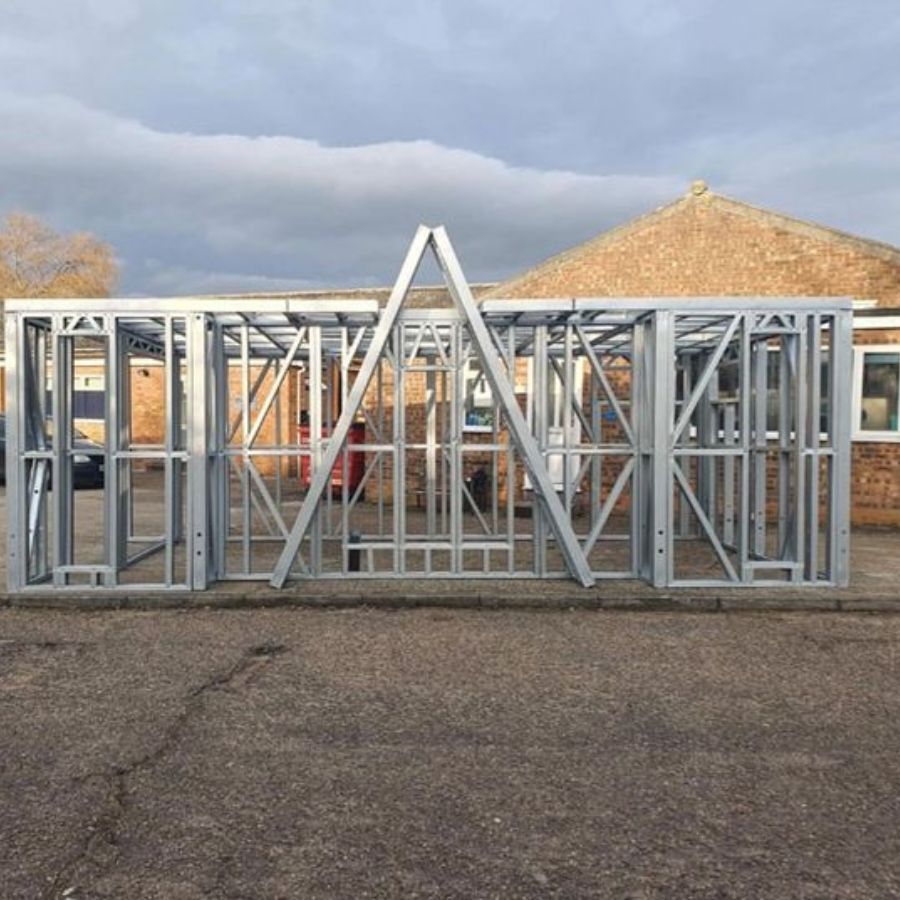

  • Steel frame Construction

    We begin our builds off site, constructing the steel frame sections ready for installation. This speeds up the onsite build procedure.

    Why steel ?

    Steel makes up around 75% of all major appliances, and for good reason too! One of the biggest benefits to using steel is the low carbon footprint it produces.
    The recycling of steel in the UK saves enough energy to power around 18 million houses for an entire year, and surprisingly, is recycled more than any other product, including paper, plastic and glass. One of the main reasons that steel is so widely recycled is because it can be repeatedly recycled without any loss of strength.

    • Steel is stronger than timber
    • Steel doesn’t rot
    • Steel doesn’t absorb moisture and wont harbour unexpected guests

FOUNDATIONS

We use a galvanised steel and concrete foundation system which raises the studio off the ground allowing airflow under the building eliminating damp.

Wall construction

Our wall construction consists of 8 layers (from inside to out).

  • Skim plaster
  • 12mm plasterboard
  • Breathable membrane
  • 100mm thermal insulation
  • 100mm galvanised steel frame (stronger and more durable than wood)
  • Vapour barrier
  • Thermal bridging (pressure treated lattice batten)
  • Exterior cladding

We use FSC produced Western Red Cedar and Siberian larch cladding fixed to a lattice of pressure treated batten which allows the cladding to breathe.

STEEL FRAME CONSTRUCTION

We begin our builds off site, constructing the steel frame sections ready for installation. This speeds up the onsite build procedure.

Why steel ?

Steel makes up around 75% of all major appliances, and for good reason too! One of the biggest benefits to using steel is the low carbon footprint it produces.
The recycling of steel in the UK saves enough energy to power around 18 million houses for an entire year, and surprisingly, is recycled more than any other product, including paper, plastic and glass. One of the main reasons that steel is so widely recycled is because it can be repeatedly recycled without any loss of strength.

  • Steel is stronger than timber
  • Steel doesn’t rot
  • Steel doesn’t absorb moisture and wont harbour unexpected guests

PLANNING

PERMISSION

What are the Permitted Development Rules on Garden Rooms?

Rules governing outbuildings apply to sheds, playhouses, greenhouses and garages as well as other ancillary garden buildings such as swimming pools, ponds, sauna cabins, kennels, enclosures (including tennis courts) and many other kinds of structure for a purpose incidental to the enjoyment of the dwellinghouse.

Build Aviator’s estimating service can help you plan your project by providing an accurate cost of the proposed changes. Find out more.

If you are unsure if your planned building falls into the category of ‘outbuildings’ or if you are unsure if planning permission is required, please contact your local planning authority.

Other rules relate to the installation of a satellite dish, the erection of a new dwelling or the erection or provision of fuel storage tanks.

Outbuildings are considered to be permitted development, not needing planning permission, subject to the following limits and conditions:

  • No outbuilding on land forward of a wall forming the principal elevation.
  • Outbuildings and garages to be single storey with maximum eaves height of 2.5 metres and maximum overall height of four metres with a dual pitched roof or three metres for any other roof.
  • Maximum height of 2.5 metres in the case of a building, enclosure or container within two metres of a boundary of the curtilage of the dwellinghouse.
  • No verandas, balconies or raised platforms (a platform must not exceed 0.3 metres in height)
  • No more than half the area of land around the “original house”* would be covered by additions or other buildings.
  • In National Parks, the Broads, Areas of Outstanding Natural Beauty and World Heritage Sites the maximum area to be covered by buildings, enclosures, containers and pools more than 20 metres from the house to be limited to 10 square metres.
  • On designated land* buildings, enclosures, containers and pools at the side of properties will require planning permission.
  • Within the curtilage of listed buildings any outbuilding will require planning permission.

*The term “original house” means the house as it was first built or as it stood on 1 July 1948 (if it was built before that date). Although you may not have built an extension to the house, a previous owner may have done so.

*Designated land includes national parks and the Broads, Areas of Outstanding Natural Beauty, conservation areas and World Heritage Sites.

Please note: The permitted development allowances described here apply to houses and not to:

Information provided via www.planningportal.co.uk
